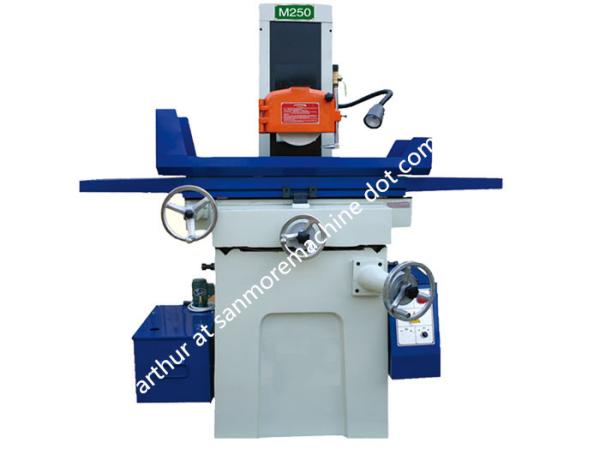

    M250 Grinding machine

    Ask Lasest Price
    Brand Name : Sanmore
    Model Number : M250
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per month
    Delivery Time : about 30 days
    • Product Details
    • Company Profile

    M250 Grinding machine

    M250 Grinding machine

    1. Adopt the exceeding precise class7(P4 level) ball bearing for spindle.

    2. Bring transmission by synchronous belt, operating simple and convenient.


    Technical ParametersUnitM250
    Max. workpiece to be Ground ( L×W×H)mm600×250×490
    Max. Grinding Lengthmm600
    Max. Grinding Widthmm250
    Distance From Table Surface To Spindle Centermm490
    Slide wayV-type rail with Steel-ball
    V-type rail with Steel-ballKg250
    Table Size (L×W)mm540×250
    Number of T -Slotmm×n12×1
    Speed OF Working Tablem/min3-23
    Cross Feed On Hand wheelmm0.02/Graduation 2.5/revolution
    Vertical Feed On Hand wheelmm0.01/Graduation 1.25/revolution
    Wheel Size (dia.× width ×bore )mm200×16×31.75
    Spindle Speeds50Hzrpm2850
    0-6000
    Spindle MotorKw1.1
    Coolant PumpKw0.4
    Minimum of Numerical Displaymm
    Machine Size (L×W×H)mm1680×1220×1720
    Packing Size (L×W×H)mm1200×1400×1940
    Gross, NetT0.85, 0.90
