Z3032 Radial Drilling Machine

Shaanxi Sanmore Industry and Trade Co., Ltd.
Contact Now
    Buy cheap Z3032 Radial Drilling Machine from wholesalers

    Buy cheap Z3032 Radial Drilling Machine from wholesalers
    • Buy cheap Z3032 Radial Drilling Machine from wholesalers

    Z3032 Radial Drilling Machine

    Ask Lasest Price
    Brand Name : Sanmore
    Model Number : Z3032
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per month
    Delivery Time : 30 days per month
    • Product Details
    • Company Profile

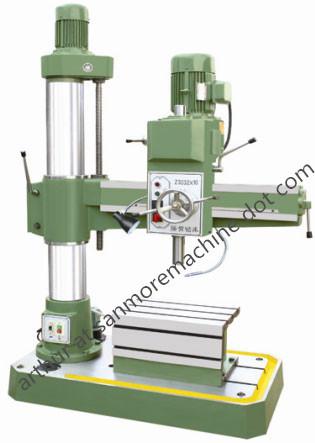

    Z3032 Radial Drilling Machine

    Z3032 Radial Drilling Machine

    Main technical parametersZ3032×10
    Max drilling dia (mm)32
    Distance from spindle nose to worktable (mm)220-980
    Distance spindle axis to column generating line (mm)260-680/780
    Spindle travel mm120
    Spindle taper(Morse)4
    Spindle speed ( r .p. m)108, 162, 262, 398, 665, 1000
    Step of spindle speed6
    Swing angle of rocker arm (°)360
    Main motor power( kw)1.5-2.2
    Lifting motor power (kw)0.75
    Machine weight kg900
    Overall size mm1235×600×1780
