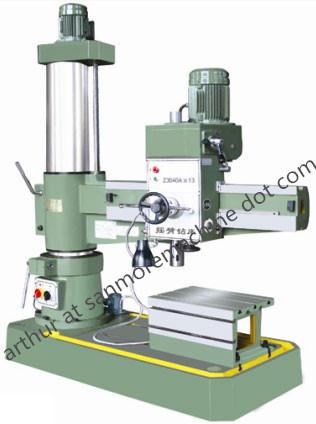

    Z3040A Radial Drilling Machine (Double-column type)

    Ask Lasest Price
    Brand Name : Sanmore
    Model Number : Z3040A
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per month
    Delivery Time : about 30 days
    • Product Details
    • Company Profile

    Z3040A Radial Drilling Machine (Double-column type)

    Z3040A Radial Drilling Machine (Double-column type)

    Main technical parametersZ3040A×13
    Max drilling dia mm40
    Distance from spindle nose to worktable (mm)260-1050
    Distance spindle axis to column generating line (mm)360-1300
    Spindle travel mm200
    Spindle taper(Morse)4
    Spindle speed r.p.m24, 44, 81, 93, 113, 158, 194, 291, 357, 410, 696,1300(r /min)
    Step of spindle speed6
    Range of spindle feeds r.p.m0.10-0.25
    Step of spindle feed3
    Swing angle of rocker arm (°)360
    Main motor power kw2.2
    Lifting motor power (kw)0.75
    Machine weight kg1700/1800
    Overall size mm1500×705×2200
