Z3132 Universal Radial Drilling Machine

Shaanxi Sanmore Industry and Trade Co., Ltd.
Contact Now
    Buy cheap Z3132 Universal Radial Drilling Machine from wholesalers

    Buy cheap Z3132 Universal Radial Drilling Machine from wholesalers
    • Buy cheap Z3132 Universal Radial Drilling Machine from wholesalers

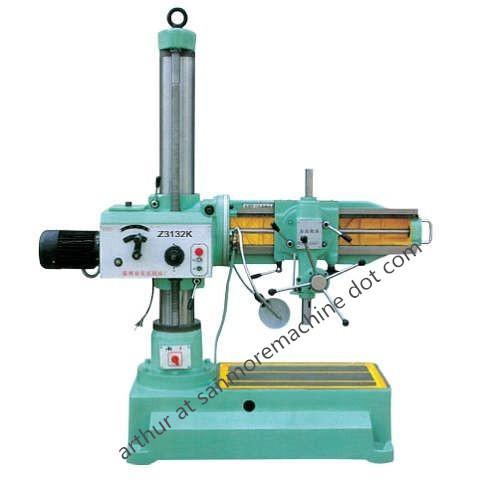

    Z3132 Universal Radial Drilling Machine

    Ask Lasest Price
    Brand Name : Sanmore
    Model Number : Z3132
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per month
    Delivery Time : about 30 working days
    • Product Details
    • Company Profile

    Z3132 Universal Radial Drilling Machine

    Z3132 Universal Radial Drilling Machine

    Main technical parametersZ3132×8
    Max drilling dia casting iron/steel31.5/25 mm
    Distance from spindle axis to the column surfaceMaximum 815mm minimum 315mm
    Level travel of spindle box50mm
    Distance of spindle nose and working surface of base plateMaximum. 870mm Minimum 25mm
    Spindle swivel angle360°
    Swing angle of spindle in horizontal plane360°
    Spindle rotation angle around the column360°
    Rocker arm lifting speed1.51 m/min
    Spindle box travel on the column845mm
    Spindle taper (Morse)NO.3
    Max spindle travel130mm
    Spindle speed173425686960 r/min
    Dimension of base worktalbe710×500 mm
    Main motor power1.5kw
    Machine weight (about)850kg
    Overall size(L×W×H)1800×700×2044 mm
